Telestar

• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115185

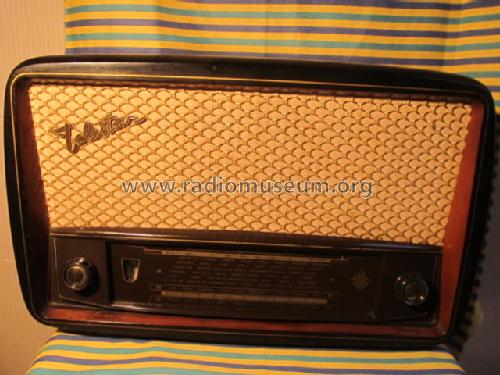

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UM80 UY41

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Line (AC, UC or DC not known) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Telestar - Telefunken Italia, Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 295 x 220 mm / 19.3 x 11.6 x 8.7 inch

• Net weight (2.2 lb = 1 kg)
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• - - Data from my own collection
