- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1966/1967
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 113293
Q: Telefunken Service
- Number of Tubes
- 1
- Valves / Tubes
- ECL86
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS; Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

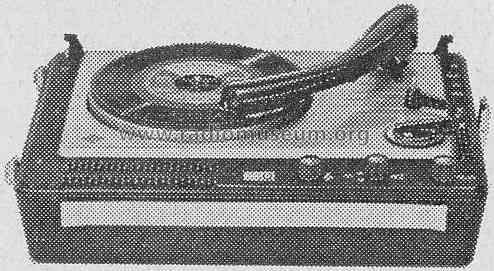

- Model: Telestop R/AS - Telefunken Deutschland TFK,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 365 x 160 x 285 mm / 14.4 x 6.3 x 11.2 inch
- Notes
- 4 Geschwindigkeiten; Stereo-Kristall-System mit Saphir. Fernbedienbare Schnellstop- und Rücklaufeinrichtung.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Source of data
- Handbuch VDRG 1966/1967
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
