• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1960 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 346942

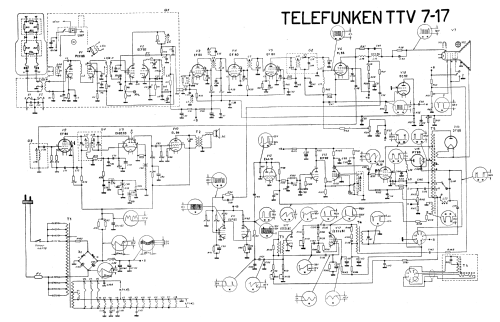

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC88 ECF82 EF80 EF80 EF80 PL83 EF80 EABC80 EL84 EC92 ECF82 EAA91 ECL82 ECF82 PL81 PY83 DY86 unknown_CRT

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110-280 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Televisore TTV7-17 - Telefunken Italia, Milano

• Notes

• Televisore in bianco/nero con VHF e predisposizione per UHF.

• Mentioned in
• -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editore, III edizione, 1960.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
