• Country
• Norway

• Manufacturer / Brand
• Telefunken El.-Gen.Aksjeselskap

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 125353

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• AF7 AL1 AZ1

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 130; 150; 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

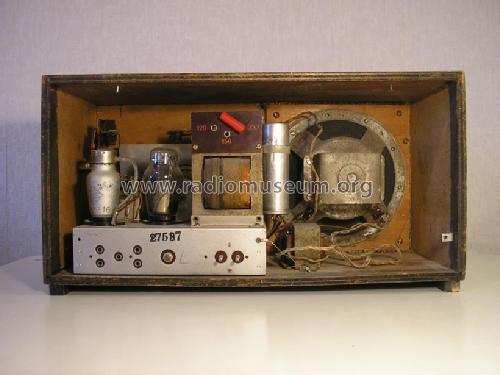

• Model: Tenor WLK [AZ1] - Telefunken El.-Gen.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 500 x 260 x 210 mm / 19.7 x 10.2 x 8.3 inch

• Price in first year of sale
• 121.00 NKr

• Mentioned in
• The Norwegian Historical Radio Society

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.
