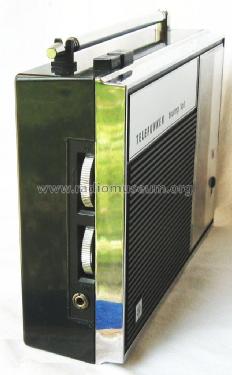

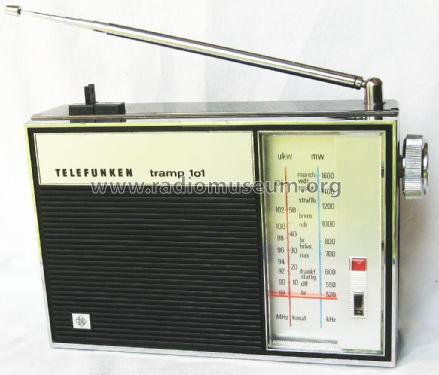

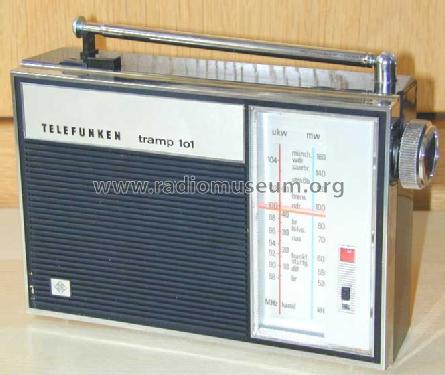

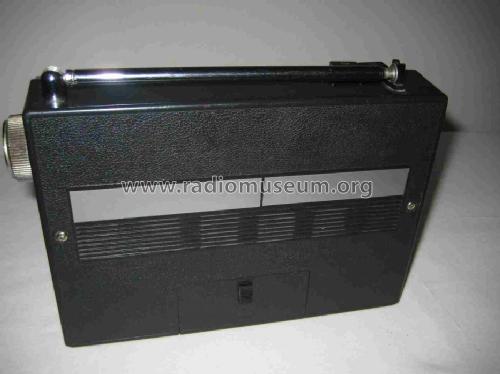

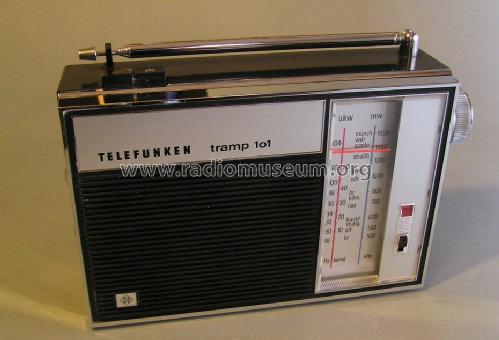

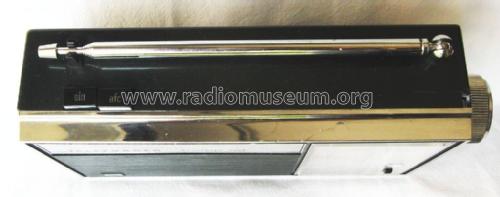

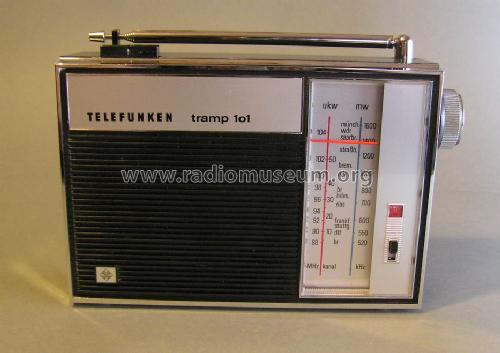

tramp 101

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1970–1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3931

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

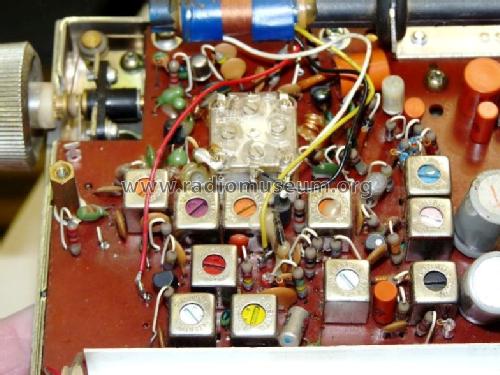

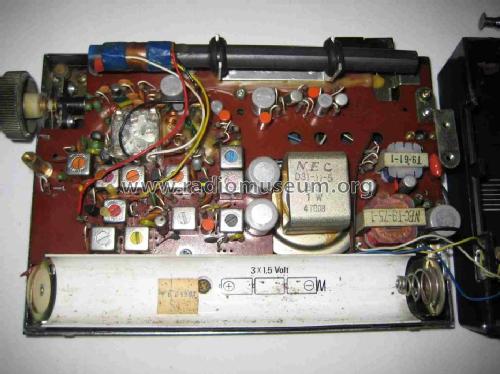

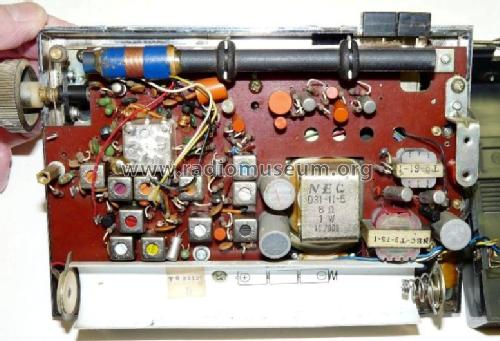

• Number of Transistors
• 11

• Semiconductors
• 2SC645 2SC829 2SC829 2SC829 2SC829 2SC829 2SA101 2SB171 2SB175 2SB178 2SB178

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

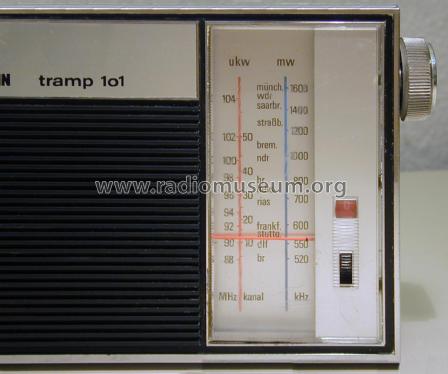

• Wave bands
• Broadcast (BC) and FM or UHF.

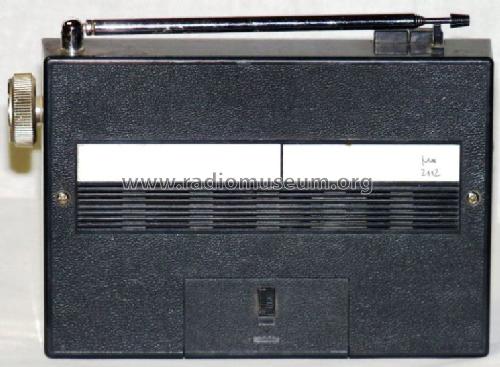

• Power type and voltage
• Dry Batteries / 3 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

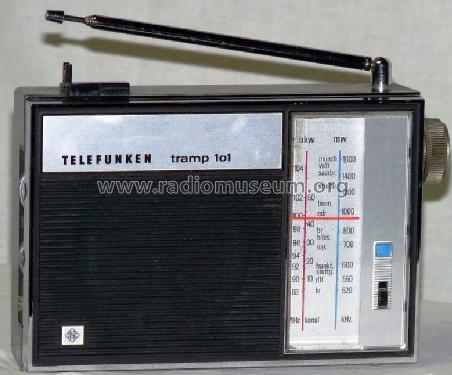

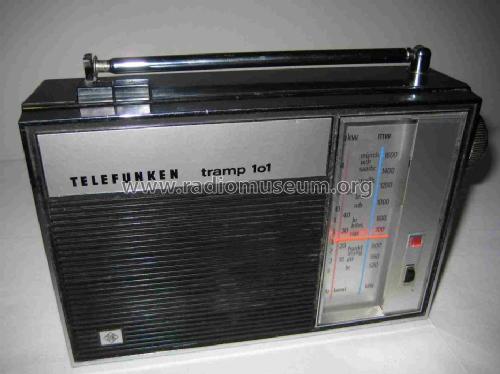

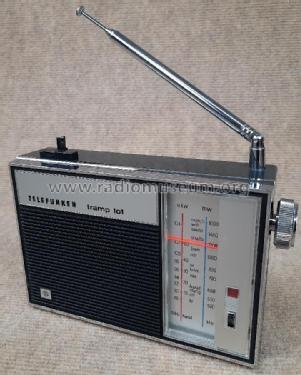

• Model: tramp 101 - Telefunken Deutschland TFK,

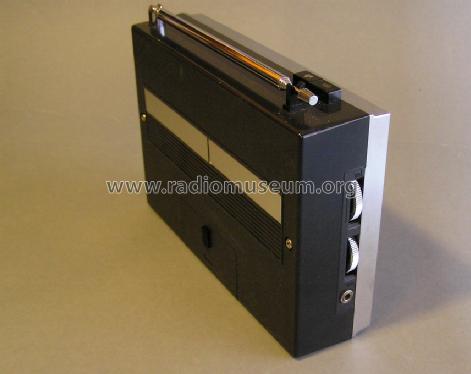

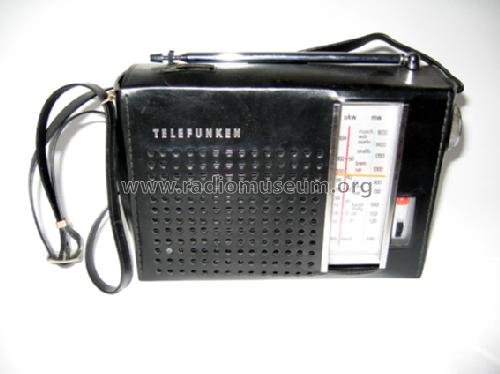

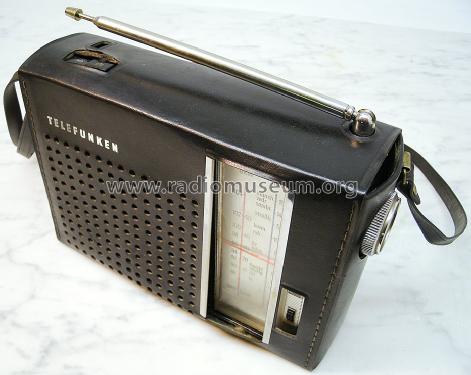

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 190 x 132 x 50 mm / 7.5 x 5.2 x 2 inch

• Source of data
• Handbuch VDRG 1970/1971 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• -- Original prospect or advert

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 3557 models, 3142 with images and 2111 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
