TTV5/17
Telefunken Italia, Milano
- Country
- Italy
- Manufacturer / Brand
- Telefunken Italia, Milano
- Year
- 1955 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 121218

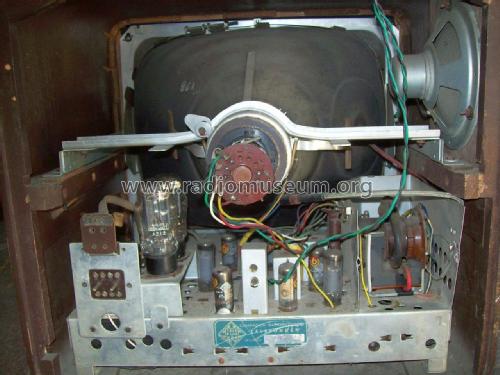

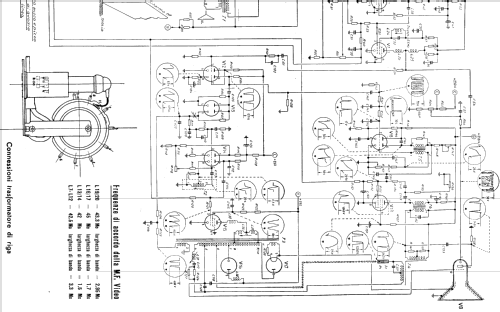

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21

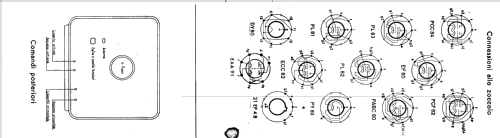

- Valves / Tubes
- PCC84 PCF82 EF80 EF80 ECC82 PL82 PL82 AZ12 AZ12 PABC80 EF80 ECC82 EAA91 ECC82 PL81 PY83 EF80 DY80 PL83 EF80 MW43-61
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 150; 200; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: TTV5/17 - Telefunken Italia, Milano
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 510 x 480 x 605 mm / 20.1 x 18.9 x 23.8 inch
- Notes
- Cambiatensione con regolazione fine: +0 V; +10 V; +20 V; +40 V. Solo VHF.
- Mentioned in
- Schemario Telefunken produzione 1956-1968

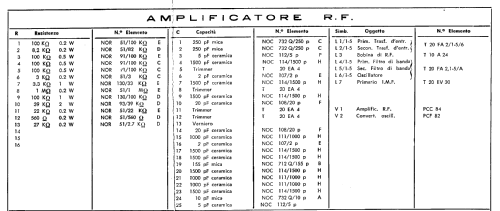

- Literature/Schematics (1)
- -- Original-techn. papers. (Costa E.: Introduzione alla televisione. Hoepli, Milano.)
- Author
- Model page created by Marco Gilardetti. See "Data change" for further contributors.
