• Country
• Brazil

• Manufacturer / Brand
• AEG-Telefunken do Brasil S.A.; São Paulo

• Year
• 1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 263089

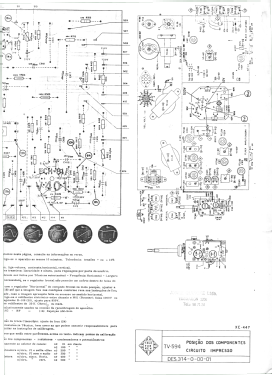

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCF801 PC900 PCF801 PC900 PCL85 ECH81 PCL82 PCF80 PCL84 PCF80 EF184 EF183 DY87 PY88 PL36 A59-11W

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 117; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: TV-594 - AEG-Telefunken do Brasil S.A.;

• Mentioned in
• -- Schematic

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.

• Other Models

• Here you find 5 models, 1 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
