Video Recorder 980 HiFi Stereo

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1985

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 221631

• Picture

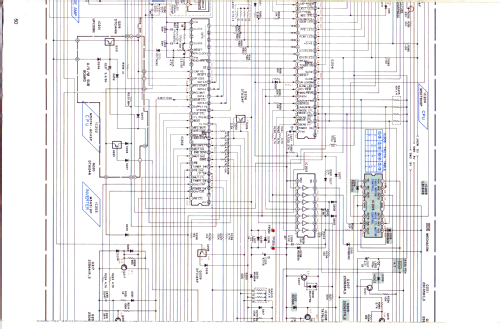

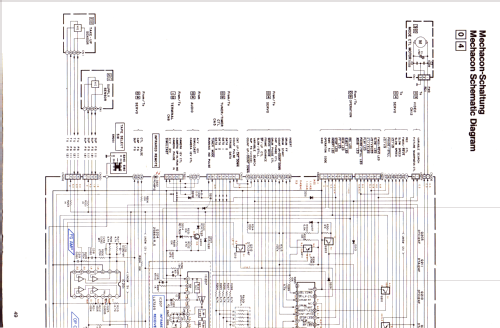

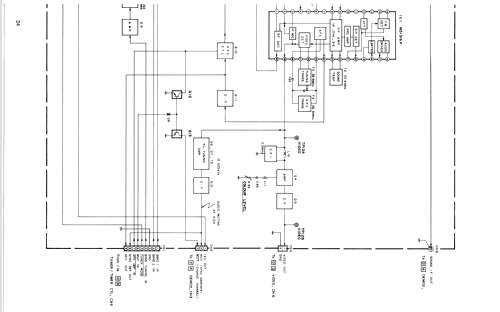

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Video Recorder 980 HiFi Stereo - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 105 x 370 mm / 17.3 x 4.1 x 14.6 inch

• Notes
• Telefunken Video Recorder 980 HiFi Stereo,
  Video-Format: VHS, HiFi-Stereo, 32 Programmspeicherplätze,
  Dolby B, Tuner: UHF/VHF.

• Source of data
• -- Original prospect or advert
