- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 24997
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

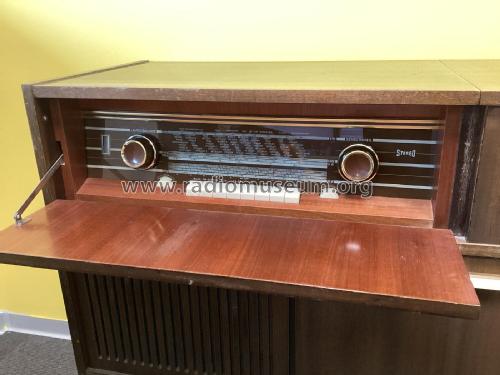

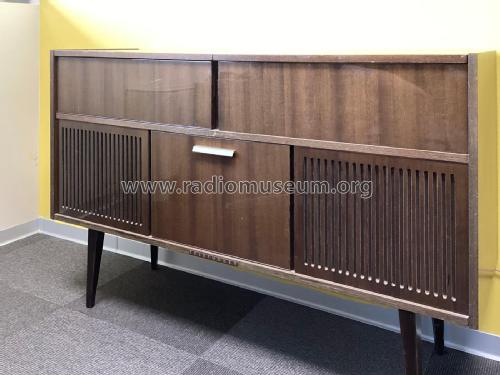

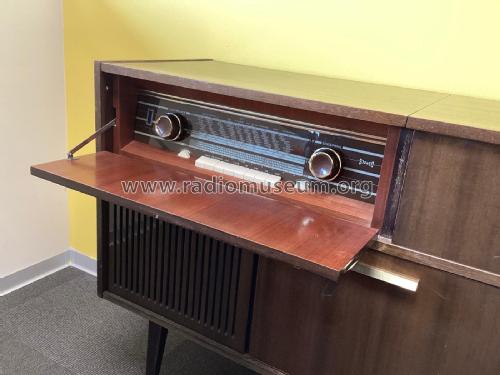

- Model: Wien 2464 [poliert] - Telefunken Deutschland TFK,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1200 x 780 x 380 mm / 47.2 x 30.7 x 15 inch
- Notes
- Rundfunk-Chassis = Allegro 2460, Stereo-NF-Verstärker mit 2 Endstufen je 3,5 W;
Phono-Chassis = Telefunken TW504.
- Net weight (2.2 lb = 1 kg)
- 40 kg / 88 lb 1.7 oz (88.106 lb)
- Price in first year of sale
- 848.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1963/1964
