• Country
• Yugoslavia

• Manufacturer / Brand
• Telekomunikacije Ljubljana

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 330074

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BE6 6BA6 6AT6 6AQ5 EM4 6X4

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 180; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

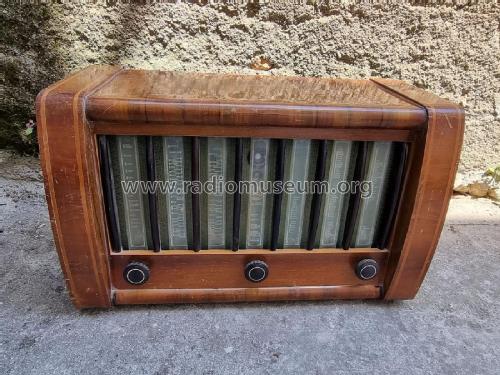

• Model: Sava 64 Ra62 Ch= Orion 442 - Telekomunikacije Ljubljana

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 610 x 380 x 280 mm / 24 x 15 x 11 inch

• Notes

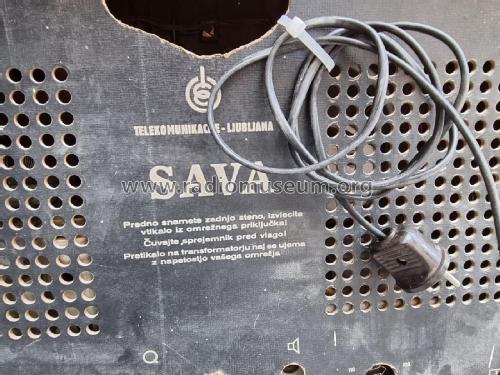

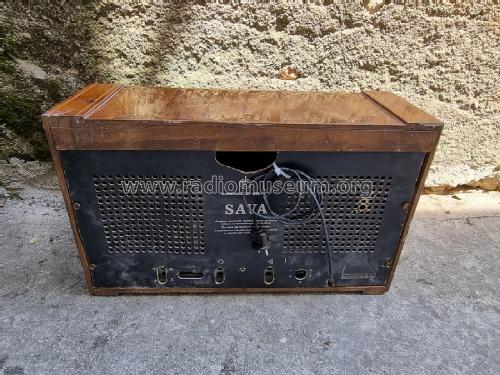

• The model is named Sava 64 in schematics, but Sava only on the back panel.

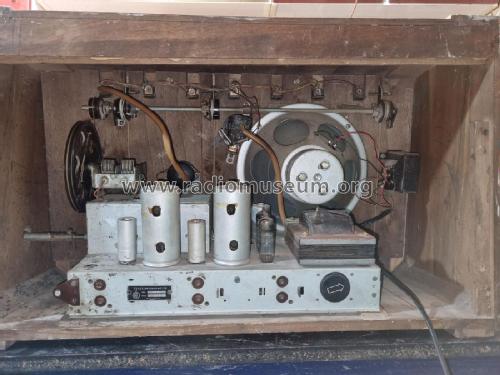

  Same chassis as Orion 442 and Nikola Tesla Kopaonik T 54-6.

• Mentioned in
• -- Schematic

• Author
• Model page created by Mario Burica. See "Data change" for further contributors.
