• Country
• Yugoslavia

• Manufacturer / Brand
• Telekomunikacije Ljubljana

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114108

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM34 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 482 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 14 cm = 5.5 inch

• Material
• Wooden case

• from Radiomuseum.org

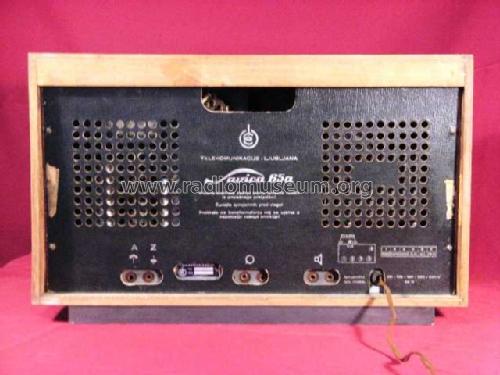

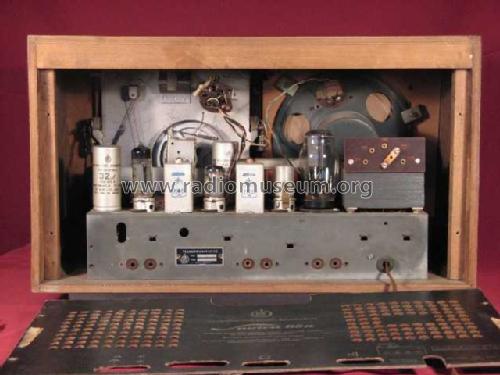

• Model: Savica 65a Ra 15a - Telekomunikacije Ljubljana

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 460 x 290 x 240 mm / 18.1 x 11.4 x 9.4 inch

• Source of data
• -- Schematic

• Author
• Model page created by Joze Snuderl. See "Data change" for further contributors.
