• Country
• Yugoslavia

• Manufacturer / Brand
• Telekomunikacije Ljubljana

• Year
• 1958/1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 357429

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

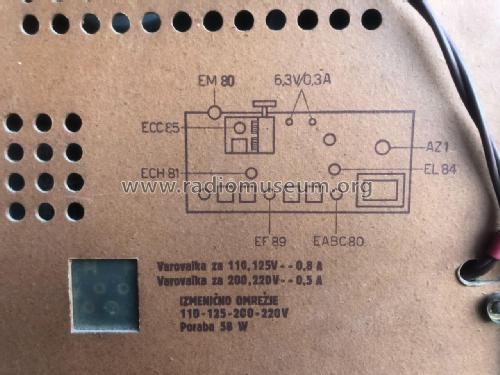

• ECC85 ECH81 EF89 EABC80 EM80 EL84 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 482/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 200; 220; Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Soča RA18 - Telekomunikacije Ljubljana

• Shape

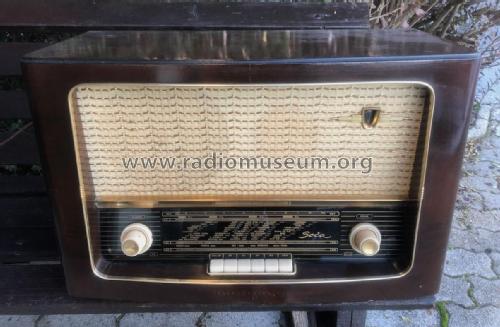

• Tablemodel with Push Buttons.

• Notes

• Second version of the "Soča" radio receiver.

• Author
• Model page created by Miha Vodlan. See "Data change" for further contributors.
