• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• Telemark; (where?)

• Year
• 1975 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 218460

• Number of Transistors
• 18

• Semiconductors
• 2SC644 2SC644 2SC644 2SC644 2SC828 2SC828 2SC828 2SC828 2SC1317 2SC1317 2SC1317 2SC1317 2SA719 2SA719 2SC1398 2SC1398 2SC1398 2SC1398

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 230; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

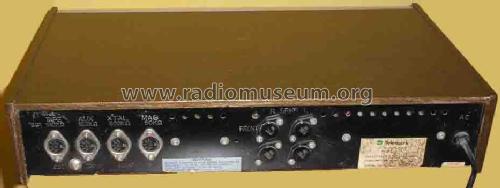

• Model: A-20 - Telemark; where?

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 380 x 80 x 240 mm / 15 x 3.1 x 9.4 inch

• Notes
• Stereo. DIN terminals. 45 W power consumption.

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Author
• Model page created by José Moreno-Conej. See "Data change" for further contributors.
