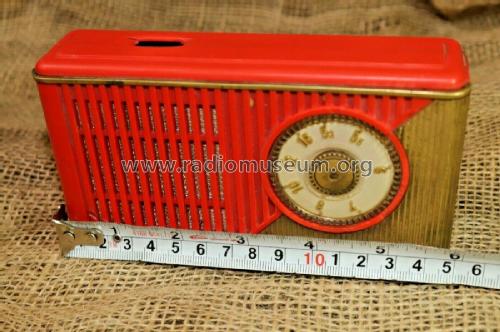

Partner III (?)

Telemisr (تليمصر), Ismailia and Cairo

Data
Forum
Pictures
Collections

  • Year
  • 1962 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 323878

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / AA: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Partner III - Telemisr تليمصر, Ismailia and
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 148 x 82 x 40 mm / 5.8 x 3.2 x 1.6 inch
  • Notes

  • Similar to the different German Telefunken Partner models, notably Partner III - but with MW only.

    The actual product name used by Telemisr is as of yet unknown.

  • Author
  • Model page created by Aldo Andreani. See "Data change" for further contributors.
