• Country
• Great Britain (UK)

• Manufacturer / Brand
• Telequipment Ltd.; London

• Year
• 1976 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 135164

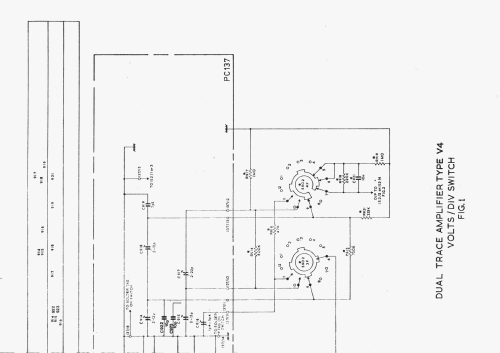

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• T7400-31-2

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

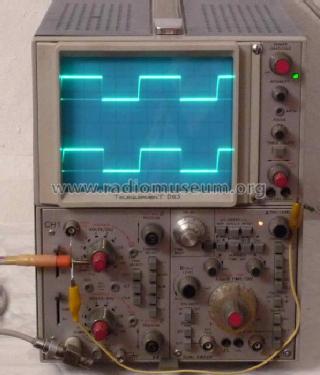

• Model: Oscilloscope D83 - Telequipment Ltd.; London

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 290 x 215 x 520 mm / 11.4 x 8.5 x 20.5 inch

• Notes
• 50-MHz-Zweikanal-Oszilloskop mit Doppelzeitbasis, Verstärkereinschub und Ablenkeinschub, Osziröhre mit 15 kV Nachbeschleunigungsspannung.

  ---

  50MHz 7" CRT, 2 channels oscilloscope with 2 plug-in: Dual trace Amplifier Unit type V4 and Dual Sweep unit type S2A.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Original-techn. papers. (Original V4 and S2A instruction manuals)

• Author
• Model page created by Andreas Reuther. See "Data change" for further contributors.
