Oscilloscope D65
Telequipment Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Telequipment Ltd.; London
- Year
- 1970 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 121436
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- D14-180GH
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 100-125; 200-250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

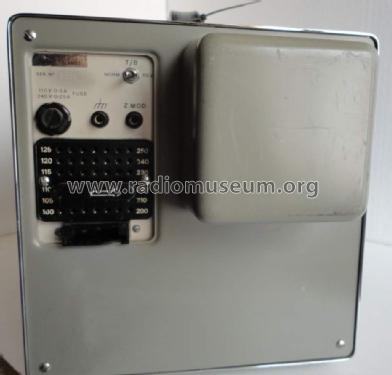

- Model: Oscilloscope D65 - Telequipment Ltd.; London
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 210 x 240 x 370 mm / 8.3 x 9.4 x 14.6 inch
- Notes
- Dual Channel.
Y-Ch: 10 mV-50 V and 10× Magn., X-Ch: 0,1 µs-2 s/Div and 5× Magn., Trigg. example TV-Field and Line.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Price in first year of sale
- 2,050.00 DM
- Source of data
- - - Data from my own collection
- Author
- Model page created by Eero Ukkola. See "Data change" for further contributors.
