• Country
• Great Britain (UK)

• Manufacturer / Brand
• Telequipment Ltd.; London

• Year
• 1970

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 96803

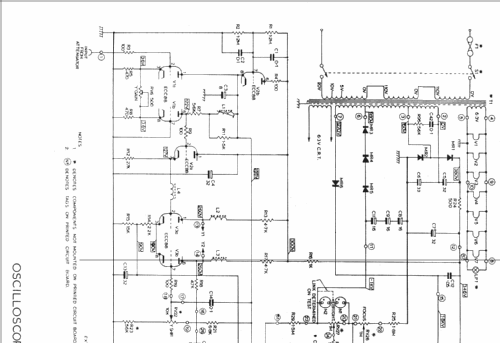

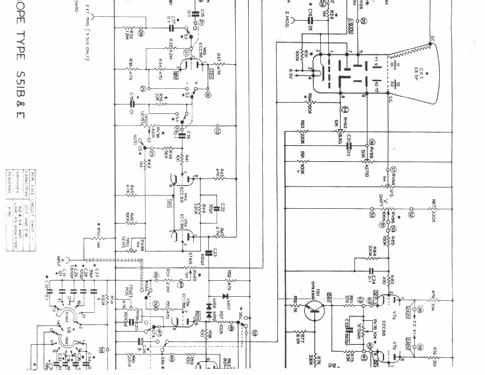

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECF80 ECC88 ECC88 ECC88 ECC88 ECC88 ECC88 Se5F/P31

• Number of Transistors
• 1

• Semiconductors
• BC107

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-125; 220-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope S51B - Telequipment Ltd.; London

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 180 x 205 x 340 mm / 7.1 x 8.1 x 13.4 inch

• Notes
• Timebase 0,001-100 mS, Y-Input DC/AC 0,1-50 V/cm. RAMP_out, X_in, Z_in.

• Net weight (2.2 lb = 1 kg)
• 8.1 kg / 17 lb 13.5 oz (17.841 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Otto Frosinn. See "Data change" for further contributors.
