Serviscope S51E

Telequipment Ltd.; London

Data
Forum
Pictures
Collections

  • Year
  • 1964 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 338673

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Serviscope S51E - Telequipment Ltd.; London
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 7 x 8 x 15 inch / 178 x 203 x 381 mm
  • Notes

  • This instrument has been designed specifically for educational use.
    It incorporated a 5in flat-faced p.d.a. tube operated at 3 kV.
    The time-base of the S51E provides six pre-set calibrated sweep speeds from 100msec/cm to 1µsec/cm.
    Y amplifier frequency response is DC. to 3 MHz at maximum sensitivity of 100mV/cm.
    Input impedance is 1MΩ + 30pF (Approx.).

    The S51E is available with short persistence or a long persistence tube.

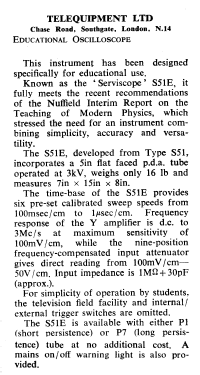

    All other characteristics are in the original attached article.

    See also the Serviscope S51A.

  • Net weight (2.2 lb = 1 kg)
  • 16 lb 0 oz (16 lb) / 7.264 kg
  • Mentioned in
  • Electronic Engineering, volume 36, March 1964.
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
