Armador 46 AC/DC
Teleradio Engineering Corp.; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Teleradio Engineering Corp.; New York
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122217
-
- Brand: TeCo

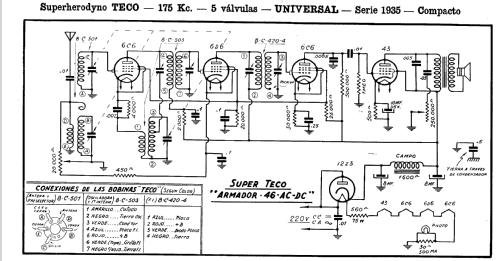

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 1 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 2 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Armador 46 AC/DC - Teleradio Engineering Corp.;
- Shape
- Tablemodel, with any shape - general.
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Heriberto Tavella. See "Data change" for further contributors.
