• Country
• Japan

• Manufacturer / Brand
• Telereader

• Year
• 1980

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 97101

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors

• Main principle
• RF Converter/Adapter (not voltage converter)

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

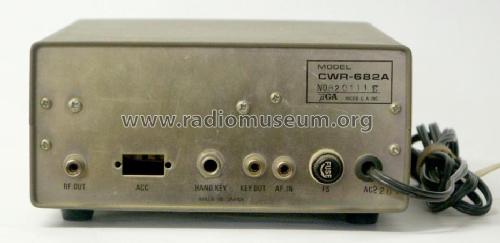

• Model: CW Telereader CWR-682A - Telereader

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 180 x 80 x 260 mm / 7.1 x 3.1 x 10.2 inch

• Notes
• Decoder für CW, eletronischer Keyer;
  Eingang NF (AF), Ausgang TV, Drucker Centronics.

• Net weight (2.2 lb = 1 kg)
• 2.7 kg / 5 lb 15.2 oz (5.947 lb)

• Price in first year of sale
• 995.00 DM

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
