• Country
• United States of America (USA)

• Manufacturer / Brand
• Telesonic Corp. of America; New York

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 184223

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 14A7 14Q7 14A7 14B6 50A5 or 35A5 35Y4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Telesonic 1635 - Telesonic Corp. of America;

• Shape
• Tablemodel, low profile (big size).

• Literature/Schematics (4)

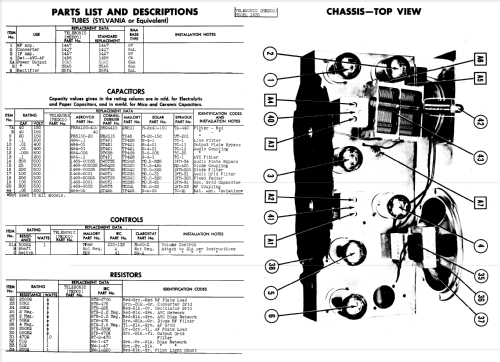

• Photofact Folder, Howard W. SAMS (Set 20, Date 6/47, Folder 4710-22)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 4 models, 4 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
