- Country
- Spain
- Manufacturer / Brand
- TeleSprint (marca) - see also ELBE Electrónica Bertrán; Barcelona
- Year
- 1960 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 300590

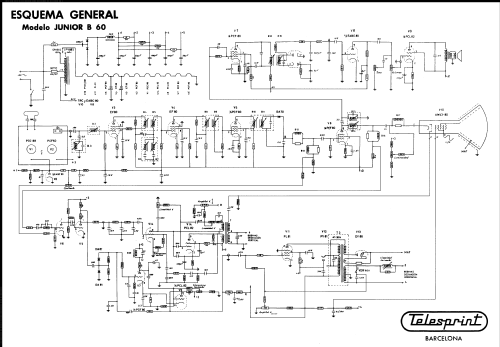

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- PCC88 PCF80 EF80 EF80 PCF80 PCF80 PCF80 PCL82 PCL82 PL81 PY81 or PY88 DY86 EABC80 AW43-80
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz; 1 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Junior B-60 - TeleSprint marca - see also
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 490 x 400 x 390 mm / 19.3 x 15.7 x 15.4 inch
- Notes
-
Telesprint (ELBE), Junior B-60
TV B/N con selector rotativo de VHF y TRC de 17" @ 90º
Véase también modelo B-60 con TRC de 110º
- Mentioned in
- Esquemario TV REDE, Tomo II, 1964
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
