In-Line Amplifier 950-2400 MHz FP 51

Telestar-Digital SRD-GmbH; Dreis-Brück

Data
Forum
Pictures
Collections

  • Year
  • 2010 ??
  • Category
  • RF (Radio Frequency-) Amplifier
  • Radiomuseum.org ID
  • 357066

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Radio Frequency Amplification only
  • Wave bands
  • SAT-IF
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC 15 +/- 3 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: In-Line Amplifier 950-2400 MHz FP 51 - Telestar-Digital SRD-GmbH;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 140 x 80 x 20 mm / 5.5 x 3.1 x 0.8 inch
  • Notes

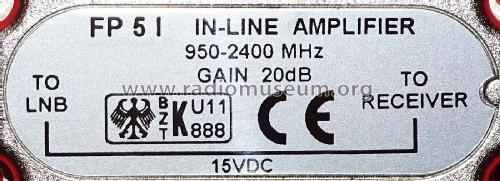

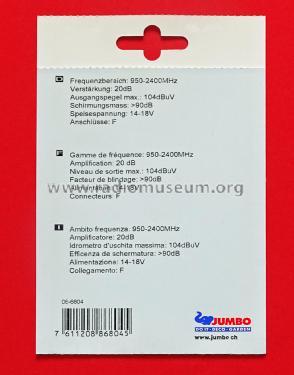

  • The Telestar FP 51 Inline Amplifier can be connected near the LNB of a domestic satellite TV installation to boost the signal sent to the receiver. The amplifier has a gain of 20 dB over the frequency range 950 to 2400 MHz. It has female F-type sockets for the 75 Ω input and output coax cables and is powered by the LNB voltage from the receiver (nominally 13 or 18 V, depending on the LNB polarisation selected). Maximum output level 104 dBµV. Shielding factor > 90 dB.

  • Net weight (2.2 lb = 1 kg)
  • 0.050 kg / 0 lb 1.8 oz (0.11 lb)
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Bruce Taylor. See "Data change" for further contributors.
