• Country
• Italy

• Manufacturer / Brand
• Tele System Electronic Srl; Bressanvido, Vicenza

• Year
• 1990 ?

• Category
• Digital terrestrial, Internet and SAT receiver (also analogue)

• Radiomuseum.org ID
• 223860

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion

• Wave bands
• SAT-IF

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

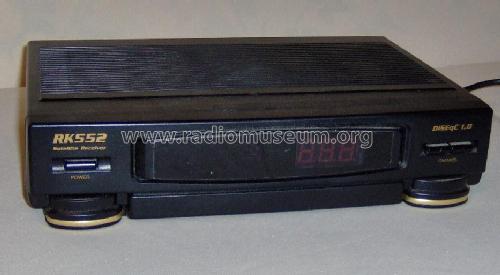

• Model: TV-Radio Satellite Receiver RK-552 - Tele System Electronic Srl;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 285 x 60 x 205 mm / 11.2 x 2.4 x 8.1 inch

• Notes
• SAT IF 900 to 2150 MHz, 479,5 MHz (DSR); 500 Channels; IF Bandwidth 27 MHz; AF Bandwidth 150 kHz; LNB Voltage 14/18 V, for magnetic (V) & electric (H) polarizer; Mono & Stereo Audio; UHF band modulator CCIR G standard; enclosed on Telesystem KEL01 Kit (RK552 Receiver and 80 cm diameter disc antenna).

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Emilio Focosi. See "Data change" for further contributors.

• Other Models

• Here you find 11 models, 8 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
