• Country
• Europe

• Manufacturer / Brand
• Teleton Gruppe

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194148

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 115; 230 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

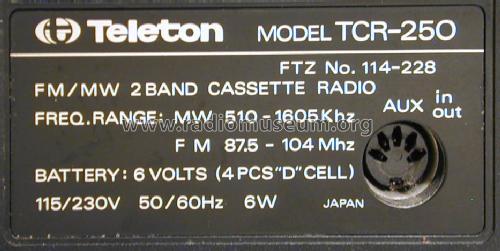

• Model: FM/MW 2 Band Cassette Radio TCR-250 - Teleton Gruppe

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 275 x 235 x 90 mm / 10.8 x 9.3 x 3.5 inch

• Notes

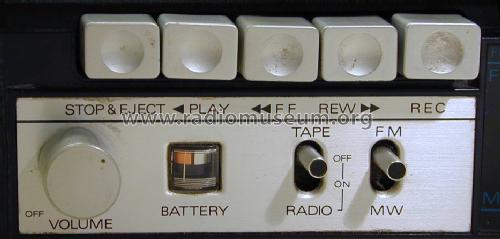

• UKW Bereich CCIR von 88...104 MHz. Monorekorder Auto stop, automatic level control recording, eingebautes Condenser Microphone.
  Batteriespannungsanzeige über Indikatorinstrument, Höhen- Tiefen- Umschalter, Anschlüsse AUX, MIC, Remote, SP Monitor on-off, Ohrhörer.
  Nach der Skalenbeschriftung zu urteilen war der Verkaufsraum des Gerätes Westeuropa.

• Net weight (2.2 lb = 1 kg)
• 2.250 kg / 4 lb 15.3 oz (4.956 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
