• Country
• Europe

• Manufacturer / Brand
• Teleton Gruppe

• Year
• 1973

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 172589

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 310EUB4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Batteries (any type) / 220/ 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TD-12EU - Teleton Gruppe

• Shape
• Tablemodel, with any shape - general.

• Notes

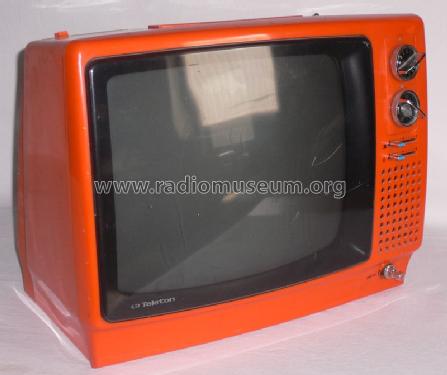

• Teleton TD-12EU;
  ~12" portable style b/w TV with CCIR B/G standard VHF turret & UHF dial tuner.
  Removable contrast filter.

• Price in first year of sale
• 398.00 DM

• Author
• Model page created by a member from A. See "Data change" for further contributors.
