• Country
• Europe

• Manufacturer / Brand
• Teleton Gruppe

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118298

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 115-230 / 6 x1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

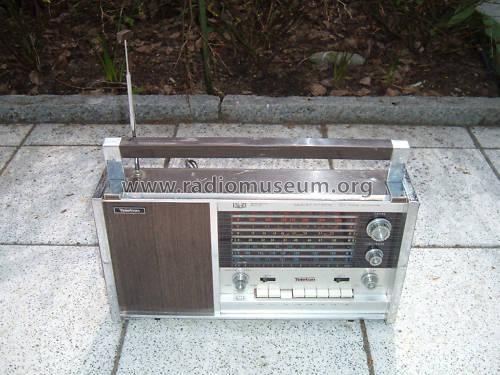

• Model: TF-181 - Teleton Gruppe

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 480 x 255 x 120 mm / 18.9 x 10 x 4.7 inch

• Notes
• AM/FM 8 range multiband radio; LW, MW, SW1: 4···12 MHz, SW2: 12···22 MHz, Police Band: 30···50 MHz, FM: 87···108 MHz, Air Band: 108···135 MHz, Police Band 2: 147···174 MHz, BFO and built-in telescopic antenna.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
