• Country
• Europe

• Manufacturer / Brand
• Teleton Gruppe

• Year
• 1967 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 145954

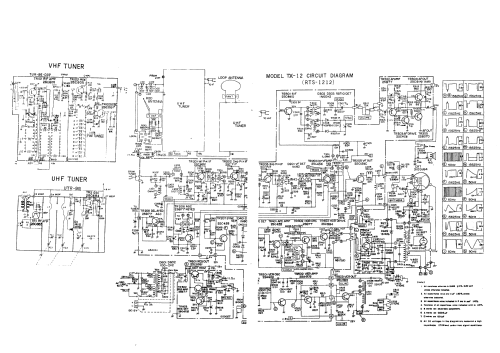

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 1X2B 310DJB4

• Number of Transistors
• 28

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TX12 [early] - Teleton Gruppe

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 430 x 280 x 310 mm / 16.9 x 11 x 12.2 inch

• Notes

• Tragbarer S/W-Fernseher, Trommeltuner für VHF und UHF, Netz- und Batteriebetrieb. Preis in Österreich ATS 4.300.- (Stand 1970)

  Siehe auch Teleton TX12 late.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Andreas Echtner. See "Data change" for further contributors.
