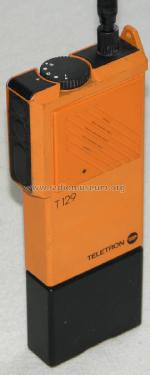

Handfunkgerät T 129-162
Teletron-Pfitzner, Frankfurt/Main
- Country
- Germany
- Manufacturer / Brand
- Teletron-Pfitzner, Frankfurt/Main
- Year
- 1985 ??
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 268644
-
- alternative name: Pfitzner, H; Frankfurt/M
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage and/or dry batteries / 7,2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Handfunkgerät T 129-162 - Teletron-Pfitzner, Frankfurt/
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 80 x 200 x 30 mm / 3.1 x 7.9 x 1.2 inch
- Notes
-
Sprechfunkgerät für das 2 m-Band, Frequenzbereich 146 - 174 MHz.
2 Kanäle, Frequenzmodulation, Sendeleistung 1 W.
Zulassung A400 215V EE
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
- Other Models
-
Here you find 17 models, 13 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Teletron-Pfitzner, Frankfurt/Main
