Televox 4

Télévox (TELEVOX SA); Neuchâtel

Data
Forum
Pictures
Collections

  • Year
  • 1924/1925
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 13667

 Technical Specifications

  • Number of Tubes
  • 4
  • Valves / Tubes
  • Main principle
  • TRF without regeneration
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - For headphones or amp.
  • Material

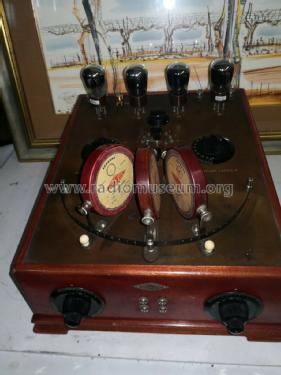

  • Wooden case, TUBES VISIBLE.
  • from Radiomuseum.org
  • Model: Televox 4 - Télévox TELEVOX SA; Neuchâtel
  • Dimensions (WHD)
  • 375 x 0 x 435 mm / 14.8 x 0 x 17.1 inch
  • Notes

  • Flachpult 3 dominierende Spulen, 2 Drehkos; Mai 1924 "neu" zu Expo Genf. Höhe ohne Spulen oder Röhren 225 mm.

    Siehe gleiches Chassis, doch mit "Rollladen" über den Röhren und Spulen.

  • Net weight (2.2 lb = 1 kg)
  • 4.6 kg / 10 lb 2.1 oz (10.132 lb)
  • Price in first year of sale
  • 490.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
