Telprevent -1/0 2103
Telmes Szövetkezet (TEL-MES); Budapest
- Country
- Hungary
- Manufacturer / Brand
- Telmes Szövetkezet (TEL-MES); Budapest
- Year
- 1972 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 239807
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 10 × 4,5 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Telprevent -1/0 2103 - Telmes Szövetkezet TEL-MES;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 340 x 210 mm / 19.7 x 13.4 x 8.3 inch
- Notes
-

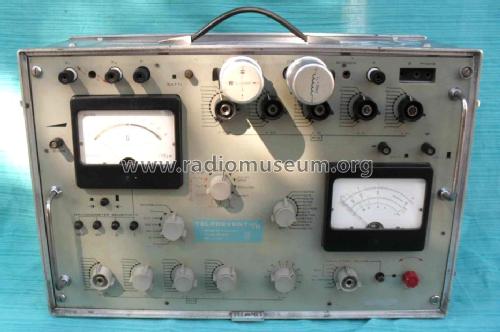

According to the front panel model Telprevent -1/0 2103 can be used for various measurements on e.g. telephone lines, four-wire-technique. It combines a inductance/capacitance bridge with resistance (Wheatstone, Varley, Murray...) and insulation measurement capabilities. Symmetry and common mode rejection can also be determined.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
