• Country
• Great Britain (UK)

• Manufacturer / Brand
• Telsen Electric Co. Ltd.; Birmingham & Manchester

• Year
• 1934 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193682

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AC/VP1 AC/TP AC/VP1 V914 AC2/Pen

• Main principle
• Superheterodyne (common); 1 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

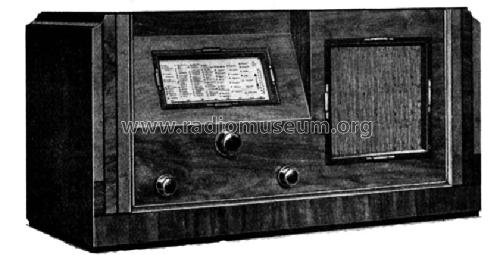

• Model: 3435BH - Telsen Electric Co. Ltd.;

• Shape
• Tablemodel, low profile (big size).

• Price in first year of sale
• 14.00 Gns

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
