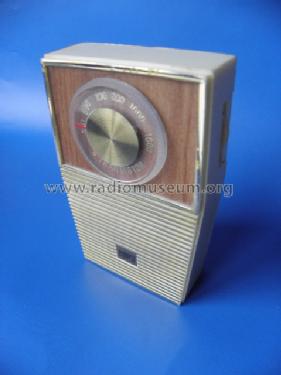

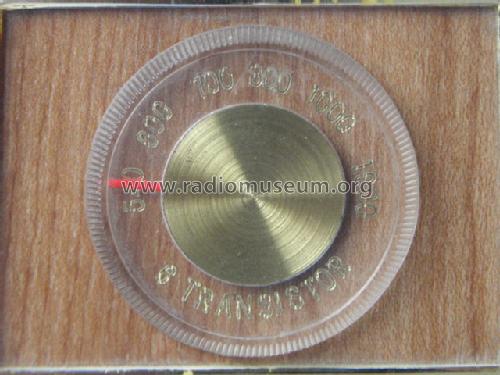

6 Transistor 606 De Luxe
Tempest (brand); Hong Kong
- Country
- Hong Kong
- Manufacturer / Brand
- Tempest (brand); Hong Kong
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 248955
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 6 Transistor 606 De Luxe - Tempest brand; Hong Kong
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 68 x 110 x 30 mm / 2.7 x 4.3 x 1.2 inch
- Notes
-
Anschluss für Ohrhörer an der linken Seite im unteren Bereich. Der Drehregler für die Lautstärke ist an der rechten Seite oben. Eine passende Tragetasche aus Kunstleder ist als Zubehör dabei.
- Net weight (2.2 lb = 1 kg)
- 0.180 kg / 0 lb 6.3 oz (0.396 lb)
- Price in first year of sale
- 16.35 DM
- Author
- Model page created by Werner Wussow. See "Data change" for further contributors.
