• Country
• United States of America (USA)

• Manufacturer / Brand
• Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63263

• • Brand: Temple

Click on the schematic thumbnail to request the schematic as a free document.

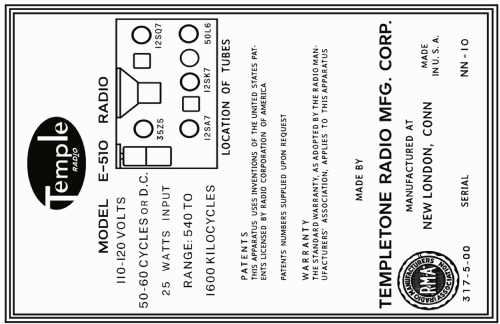

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

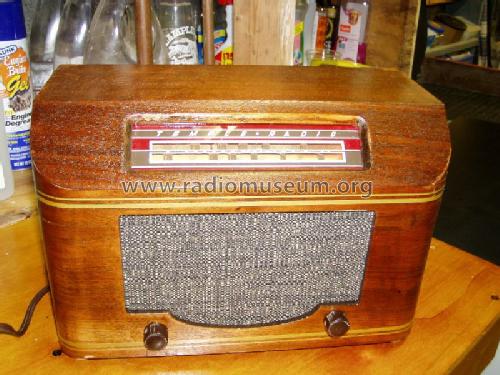

• Model: Temple E-510 - Templetone Radio Mfg. Corp.

• Shape
• Tablemodel, with any shape - general.

• Notes
• Photofact folder 462-3 shows the chassis for E-510 through E-519 with different cases (picture for E-514 only). All have a self Contained Loop Antenna.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (1)

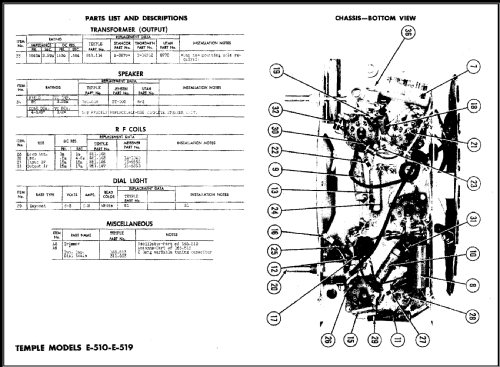

• Photofact Folder, Howard W. SAMS (Dat 7-46, set 2, folder 462-3)

• Other Models

• Here you find 59 models, 35 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT
