- Country
- United States of America (USA)
- Manufacturer / Brand
- Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 63264
-
- Brand: Temple
SAMS Photofact

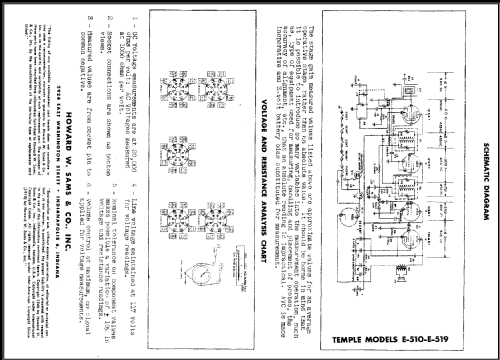

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Temple E-511 - Templetone Radio Mfg. Corp.
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes

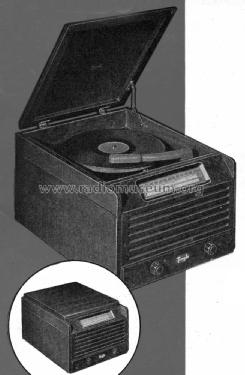

- The model Temple E-511 made by Templetone Radio Mfg. Co. is a AC operated Radio - Phonograph Combination Superheterodyne Receiver and has a self Contained Loop Antenna. There is a lid for the phonograph. The Photofact folder 462-3 names Temple models E-510 through E-519 (and shows the case for E-514). The Photofact folder 471-26 from January 1947 handles only this model E-511. In walnut or mahogany veneers.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)

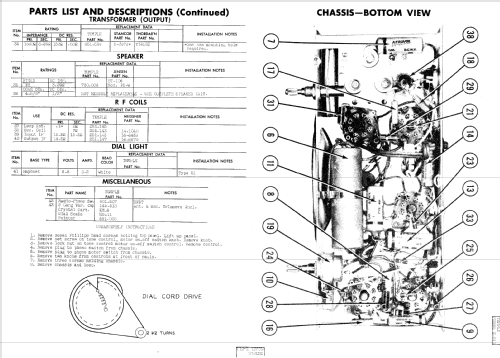

- Photofact Folder, Howard W. SAMS (Dat 7-46, set 2, folder 462-3 and Date Jan 1947 folder 471-26)
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (April 1946 page 25. June 1946 page 5. July 1946 page 21.)
- Other Models
-
Here you find 59 models, 35 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT
