- Country
- United States of America (USA)
- Manufacturer / Brand
- Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 63276
-
- Brand: Temple
SAMS Photofact

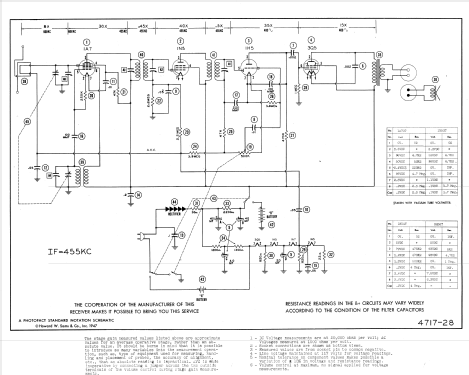

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 110 - 120 / 90 & 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
- from Radiomuseum.org

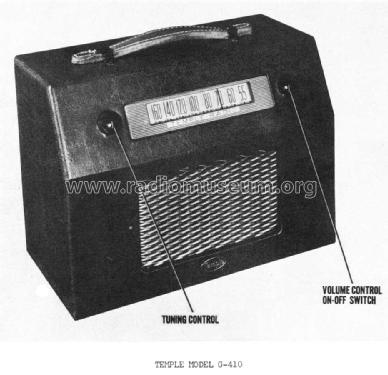

- Model: G-410 - Templetone Radio Mfg. Corp.
- Shape
- Portable set > 8 inch (also usable without mains)
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 18 = 1949 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)

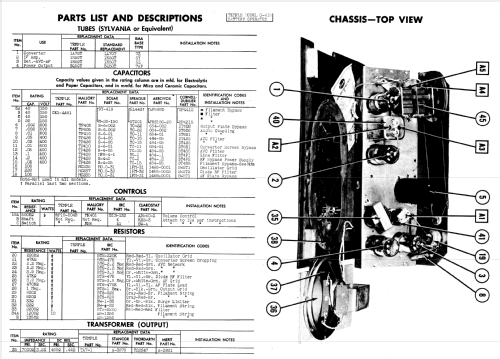

- Photofact Folder, Howard W. SAMS (Set 27, Folder 4717-28)
- Other Models
-
Here you find 59 models, 35 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT
