• Country
• United States of America (USA)

• Manufacturer / Brand
• Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63285

• • Brand: Temple

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1LA6 1LN5 1LN5 1LH4 3LF4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 110 - 120 / 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

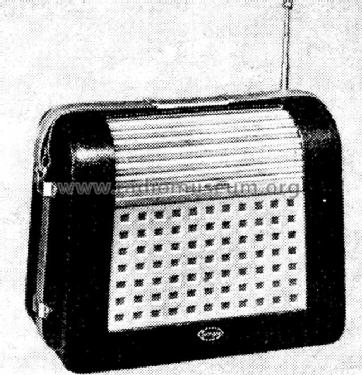

• Model: G-521 Vacationer - Templetone Radio Mfg. Corp.

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Selenium Rectifier.
  Self Contained Loop Antenna. Broadcast band from 535 to 1620 kc. Collapsible whip antenna. Smart luggage effect exterior with simulated leather covering.

• Price in first year of sale
• 64.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)

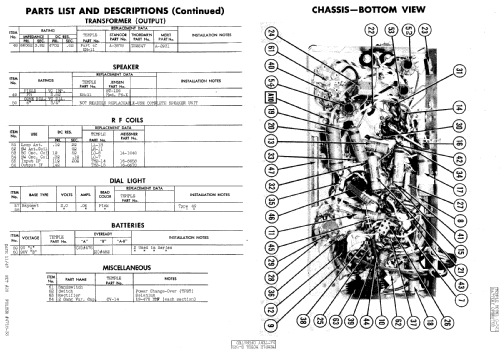

• Photofact Folder, Howard W. SAMS (Date 11-47, Set 28, Folder 4718-33)

• Literature/Schematics (2)

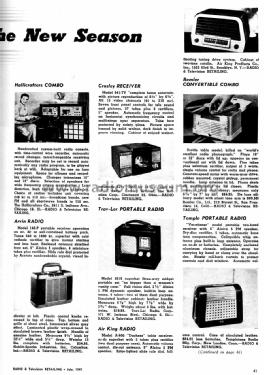

• Radio Retailing (Radio & Television R.) (June 1947 page 59. July 1947 page 41.)
