- Country
- United States of America (USA)
- Manufacturer / Brand
- Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 63291
-
- Brand: Temple

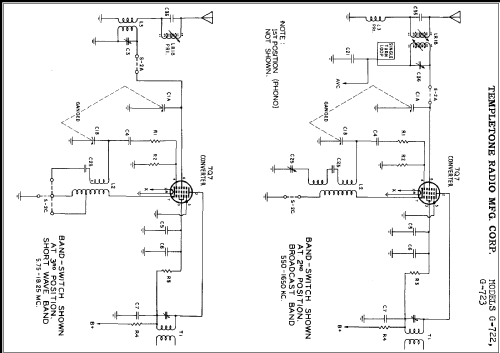

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: G-723 - Templetone Radio Mfg. Corp.
- Notes
- Speaker also available as PM.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Other Models
-
Here you find 59 models, 35 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT
