• Country
• United States of America (USA)

• Manufacturer / Brand
• Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88344

• • Brand: Temple

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12SA7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-120 Volt

• Material
• Metal case

• from Radiomuseum.org

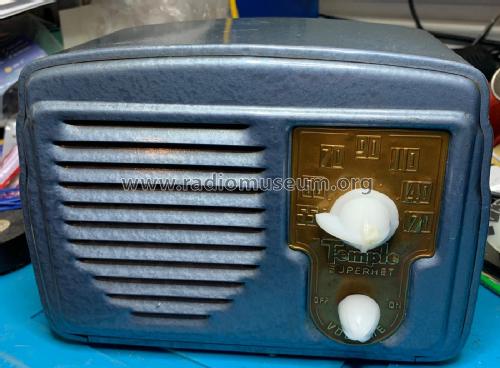

• Model: G-419 - Templetone Radio Mfg. Corp.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Original Operating Instructions of Model G-418 and G-419 let presume close similarity with G-418 which is found in Riders vol.17.

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
