- Country
- United States of America (USA)
- Manufacturer / Brand
- Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 230714
-
- Brand: Temple

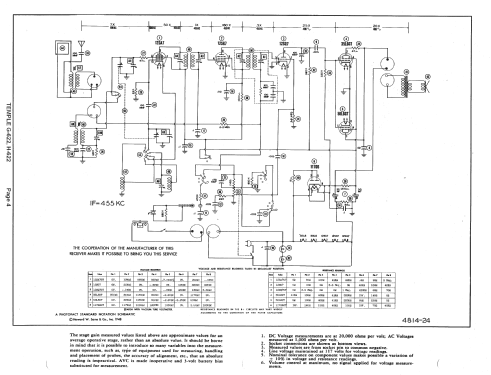

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: G-622 - Templetone Radio Mfg. Corp.
- Shape
- Console with any shape - in general
- Notes
-
AC Operated Combination Phono-Radio,
2 Band Superheterodyne Receiver with Loop Antenna. Push-pull output stage.
AM 532-1700KC SW 5.6-12,5MC
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 44 Folder 24)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
