Temple TV-1776

• Country
• United States of America (USA)

• Manufacturer / Brand
• Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT

• Year
• 1949 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 226195

• • Brand: Temple

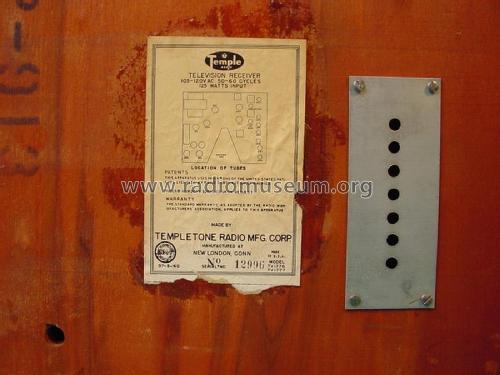

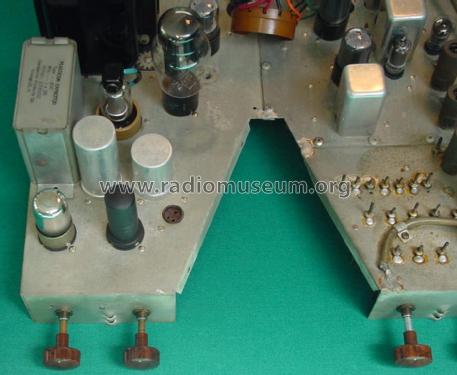

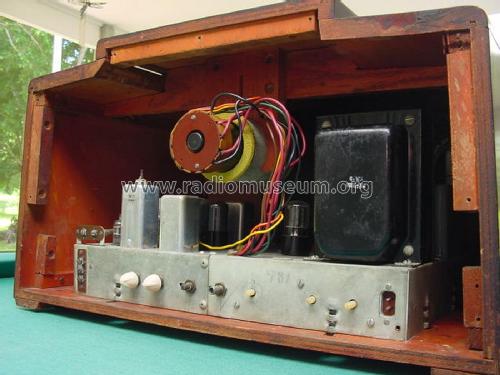

• Picture

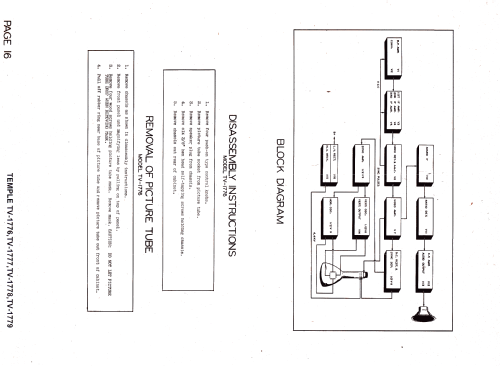

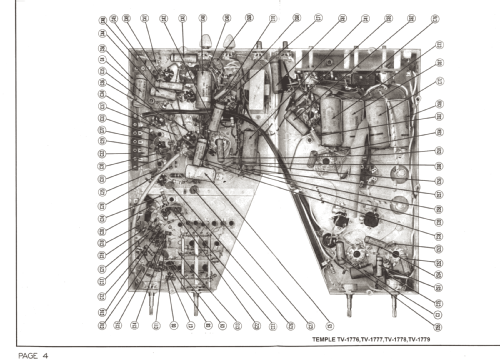

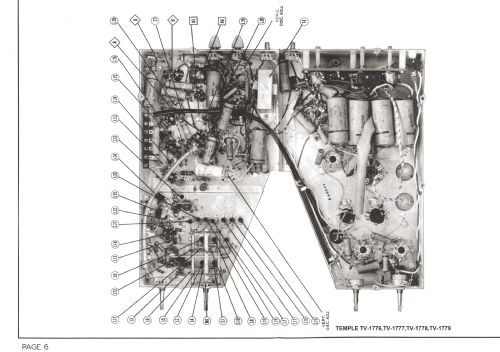

• Schematics

Previous Next

Previous Next

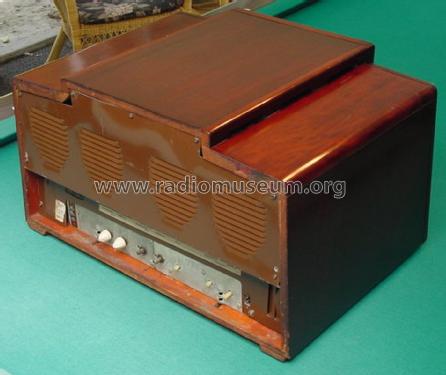

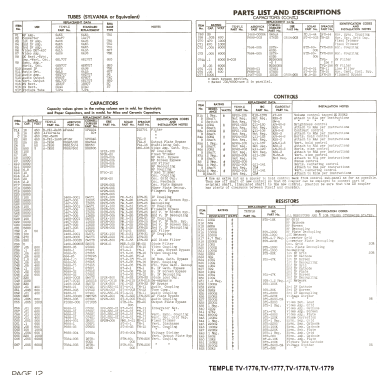

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6AK5 12AT7 6AU6 6AK5 6AK5 6AL5 6AU6 6SL7GT 6SN7GT 6AU6 6AL5 6SQ7GT 6V6GT 6SL7GT 1B3GT 5U4G 7JP4

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Temple TV-1776 - Templetone Radio Mfg. Corp.

• Shape
• Tablemodel, low profile (big size).

• Notes

• Channels 2 through 13

• Mentioned in
• Photofact Folder, Howard W. SAMS (Vol 7/49 4914-16 Set#66 Folder 16)
