• Country
• Japan

• Manufacturer / Brand
• Tensai (brand)

• Year
• 1978

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 209627

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (max.)

• Material
• Metal case

• from Radiomuseum.org

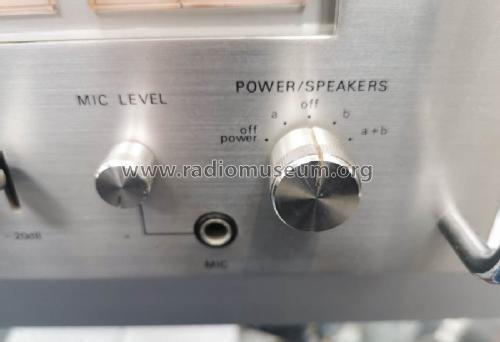

• Model: Stereo Amplifier TA-2045 - Tensai brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 145 x 360 mm / 16.9 x 5.7 x 14.2 inch

• Notes

• Tensai HiFi-Stereo Amplifier Model TA-2045.
  Continuous Power Output: 2x 60 Watts into 4 ohms, THD 0,2%
  Power Bandwidth 20 - 50000Hz, Frequency Response 17 - 40000Hz
  2x VU Analog Needle Meters
  Bass- & Treble Control
  Filter High and Low, Loudness
  Phono IN, Tuner IN, 2x AUX IN, Tape1/Tape2
  AC Outlet max. 150 Watts



• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Mentioned in
• - - Manufacturers Literature (Service Manual)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
