CW Transceiver PM 1

Ten-Tec Inc.; Sevierville, TN

Data
Forum
Pictures
Collections

  • Year
  • 1970 ?
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 341611

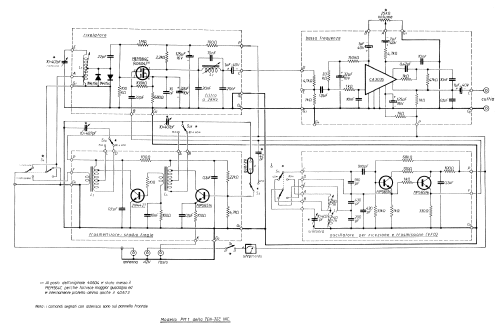

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 0
  • Valves / Tubes
  • or
  • Number of Transistors
  • 5
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Storage and/or dry batteries / 12 Volt
  • Loudspeaker
  • - only for Earphone!
  • from Radiomuseum.org
  • Model: CW Transceiver PM 1 - Ten-Tec Inc.; Sevierville, TN
  • Dimensions (WHD)
  • 10.125 x 4 x 7.5 inch / 257 x 102 x 191 mm
  • Notes

  • This unit is a special transceiver.
    It is a receiver for 80 and 40 meters in SSB-AM and CW modes with sensitivity less than 1 µV to produce a readable signal in headphone.
    Audio impedance output 1,000 Ω with frequency response 200 to 2500 Hz, ± 3 dB.
    It is also a CW transmitter with input power to final stage 2 Watts.

    From an article of Emilio Romeo I4ZZM on "CQ Elettronica" April 1974.

  • Net weight (2.2 lb = 1 kg)
  • 4 lb (4 lb 0 oz) / 1.816 kg
  • Mentioned in
  • "CQ Elettronica" Italy, CD editor number 4 April 1974.
  • Literature/Schematics (1)
  • CQ magazine, Jan. 1970, page 5.
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
