Transceiver 580 Delta

Ten-Tec Inc.; Sevierville, TN

Data
Forum
Pictures
Collections

  • Year
  • 1980 ?
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 341789

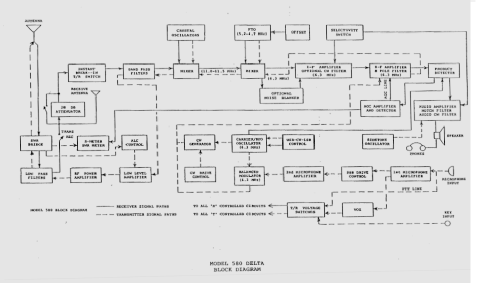

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 69
  • Semiconductors
  • Main principle
  • Transceiver
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Powered by external power supply or a main unit. / CC: 12-14 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Transceiver 580 Delta - Ten-Tec Inc.; Sevierville, TN
  • Dimensions (WHD)
  • 289 x 121 x 381 mm / 11.4 x 4.8 x 15 inch
  • Notes

  • Transceiver working in SSB-CW modes with these frequencies: 1.8-2.3; 3.5-4.0; 7.0-7.5; 10.0-10.5; 14.0-14.5; 18.0-18.5; 21.0-21.5; 24.5-25.0; 28.0-28.5; 28.5-29.0; 29.0-29.5; 29.5-30.0 MHz. 18.0 and 24.5 bands require optional crystal.
    VFO provides approximately 40 kHz plus and minus at each band end.
    Vernier tuning: 18 kHz for each revolution.
    Maximum input power to final stage 200 Watts SSB and CW.
    RF output power 85-100 Watts on 50 Ω unbalanced.
    The switch on the front panel controls the external power supply.

    Information taken from the original manual courtesy of TEN-TEC Inc.

  • Net weight (2.2 lb = 1 kg)
  • 12.5 lb (12 lb 8 oz) / 5.675 kg
  • Mentioned in
  • -- Original-techn. papers. (Original "Operator's Manual" courtesy of TEN-TEC Inc.)
  • Literature/Schematics (1)
  • -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 2, February 1982.)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
