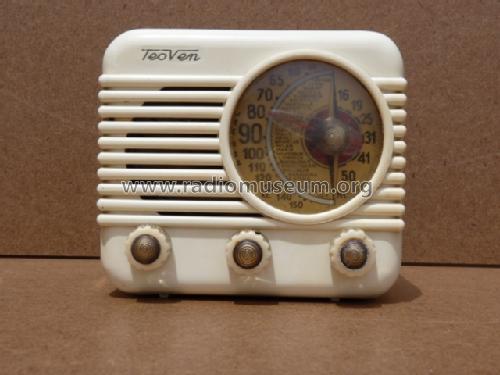

Pigmeo
Teoven, Barcelona
- Country
- Spain
- Manufacturer / Brand
- Teoven, Barcelona
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 185720
PUBLICIDAD
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- 110; 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Pigmeo - Teoven, Barcelona
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 118 x 106 x 80 mm / 4.6 x 4.2 x 3.1 inch
- Author
- Model page created by Getulio Jimenez-Gomez. See "Data change" for further contributors.
