Misuratore Intensitá di Campo TV MC775S

TES - Tecnica Elettronica System; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 166843

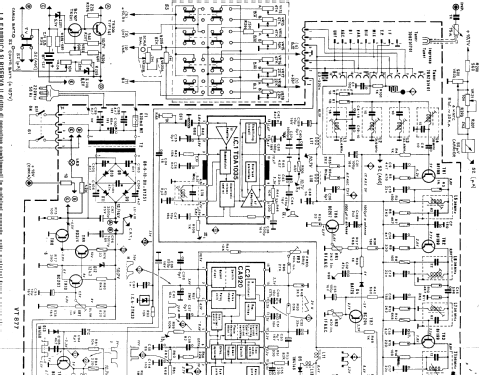

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 23
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / AC 220; Batt. 2 x 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Misuratore Intensitá di Campo TV MC775S - TES - Tecnica Elettronica
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 280 x 180 x 325 mm / 11 x 7.1 x 12.8 inch
  • Notes
  • 23 transistors plus 4 IC's.Basicaly a TVC receiver,with a sweep tuner, giving a spectrum image of the signals present at antenna. The spectrum can go from a few MHz to a maximum of 400 MHz. Intercarrier FM 5.5 MHz IF, video IF center tuned to 36 MHz. Frequency bands: I 50/90 MHz, II 170/235MHz, IV 470/650, V 650/900. CRT 125x90 mm. Available as an extra: coaxial attenuator 20 db mod. A 661/D, adapter 75/300 Ohms mod.B 661/D, DC plug mod.I 775/B. Supply can be from 2 rechargeable batteries type B 775/B of 6 V/2.6 Ah.
  • Net weight (2.2 lb = 1 kg)
  • 8.5 kg / 18 lb 11.6 oz (18.722 lb)
  • Source of data
  • - - Manufacturers Literature
  • Mentioned in
  • - - Manufacturers Literature
