• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1977 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 169012

• • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1PF-06762 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 230 x 340 x 205 mm / 9.1 x 13.4 x 8.1 inch

• Notes

• 10 W loudspeaker, 50 - 18000 Hz.

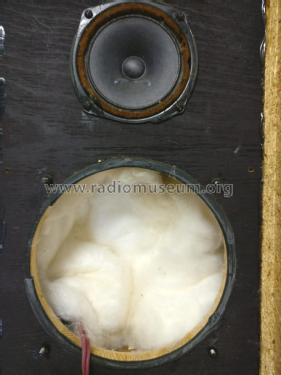

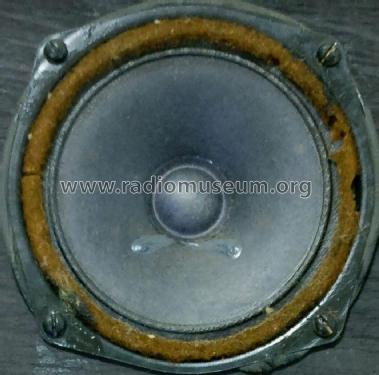

  Speaker: ARN 5604 & ARV 161.

• Net weight (2.2 lb = 1 kg)
• 6.3 kg / 13 lb 14 oz (13.877 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.
