- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 71997
-
- Brand: Supraphon
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 120-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Power out
- 2 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org

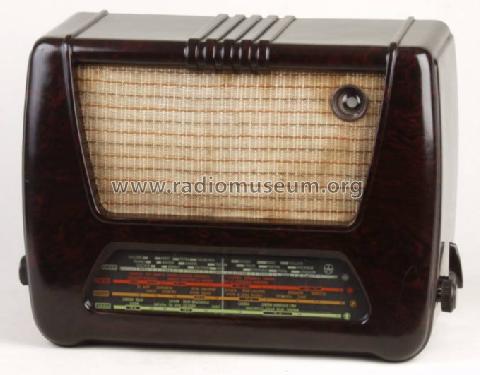

- Model: 402U-5 - Tesla; Praha, Bratislava etc.
- Shape
- Tablemodel, with any shape - general.
- Notes
- Audio output power 0,75W only at 120V DC. Variant 402U-7 has tuning scale without names of stations.
- Author
- Model page created by Gabriel Toth. See "Data change" for further contributors.
