• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 283793

• • Brand: Supraphon

• Number of Tubes
• 6

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N EM11 UY1N

• Main principle
• Superheterodyne (common); Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

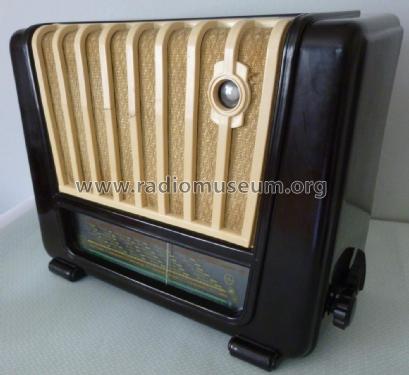

• Model: 413U-z - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 373 x 286 x 167 mm / 14.7 x 11.3 x 6.6 inch

• Notes

• Export model.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Author
• Model page created by Piotr Paszkowski. See "Data change" for further contributors.
