• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73061

• • Brand: Supraphon

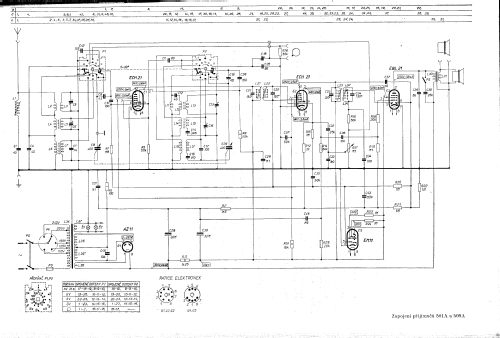

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ11 EM11

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 509A - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 460 x 320 x 190 mm / 18.1 x 12.6 x 7.5 inch

• Notes
• Variant 509A-2 with different tuning scale.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Mentioned in
• Ceskoslovenske Rozhlasove a Televizni Prijimace I a II

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.
